Getting Started
Categories:
1. Download the latest xAPI Postman Collection
We recommend using the Postman app to test and develop your xAPI integrations. We regularly update our collections with the latest endpoints that we are developing. You can download current and past collections on our Postman download page.
2. Create a User Account to Log Into the xAPI
Logging into the xAPI requires a user account in EPASS with API User
selected as the type and enabled security options.
To Add a xAPI User Account in EPASS:
-
Start EPASS and log in.
-
Go to Tools > System Maintenance > User Security.
-

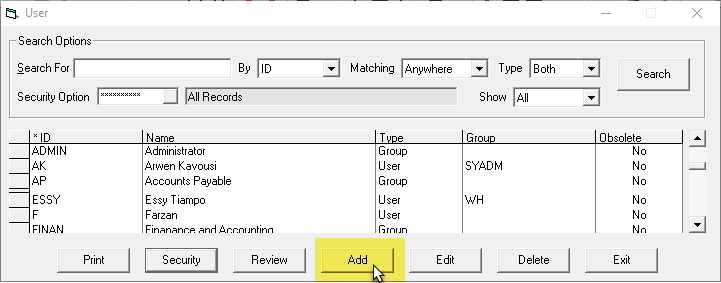

Click Add.
-

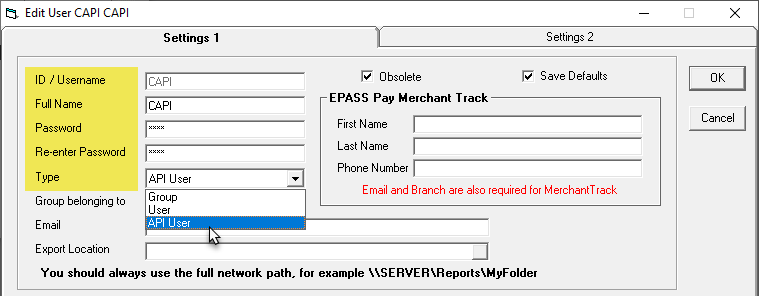

Enter an ID and Password, and then select API User from the Type dropdown.
-
Click OK.
To Enable Security Options to the xAPI User Account:
-

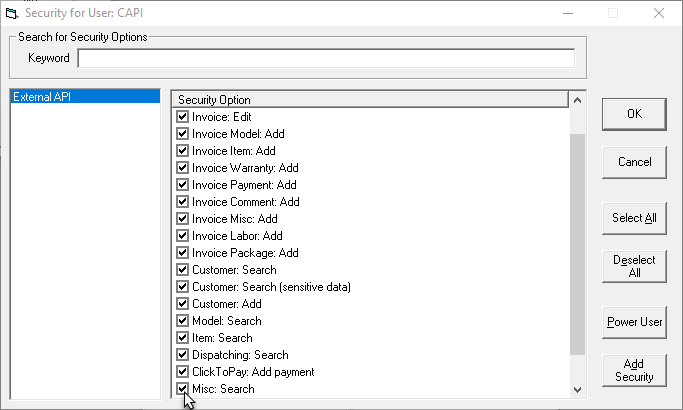

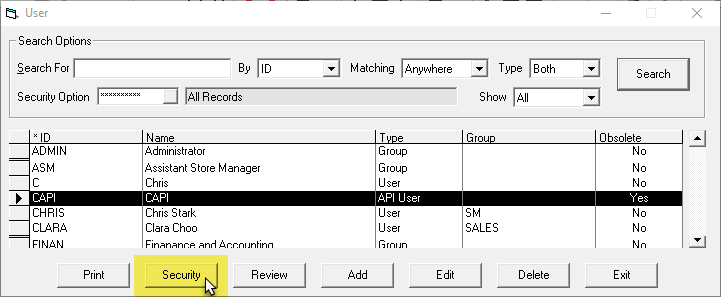

With the xAPI User selected in the User window, click Security.
-
Enable or disable the appropriate security options.
There’s options to control adding, editing, and searching for each of the EPASS database tables.
-
When finished, click OK, and then exit the User window.
Read the Session Management and Configuration topic for additional information on how the xAPI validates user access with EPASS User Accounts and Web tokens.
Note
Access to xAPI endpoints is dependent on the security options that are enabled for your EPASS User Account.3. Set Up Your Environment Variables
In Postman, create a new Environment with these variables:
Variable Name | Description |
---|---|
BaseUrl | EPASS xAPI server address. |
Version | xAPI version number. |
UserID | The name of your xAPI user account you created in EPASS. |
Password | The password for your xAPI user account. |
OrgID | Your organization identification code. |
Token | Leave this blank. |
RefreshToken | Leave this blank. |
Protocol | http |
4. Create a Test Message
Verify that everything is working by adding a message to EPASS.
-
Log in to the xAPI by sending the
LOGIN
endpoint.POST {{Protocol}}://{{BaseUrl}}/api/{{Version}}/authentication/login
-
Send the
MESSAGE
endpoint.POST {{Protocol}}://{{BaseUrl}}/api/{{Version}}/system/services/messages/message { "MessageType": "Message", "Subject": "xAPI Test Message", "UserFrom": "<Enter your username here>", "UserList" : ["<Enter your username here>"], "Message": "Hello World!" }
You should receive a successful response. If not, review the list of common errors.
-

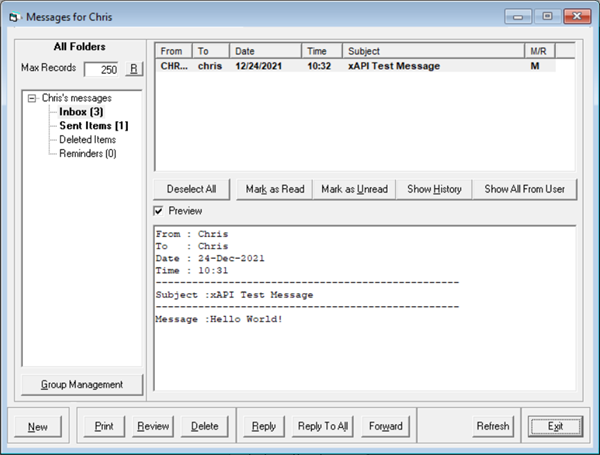

Log in to EPASS with your user account and verify that the message was created.
Congratulations! You are ready for development.
