Looking Up an Address and Viewing Map Zones

You can use the Google Map Zone Lookup utility to view your defined Map Zones. Entering either a zip code or full address centers the map on the location. Your Map Zones are overlaid on the map, providing you with a quick map zone lookup.

Before Starting:

To use this feature, a user needs this security option: Dispatching: Google Map Zone Lookup.

To Enable the Security Option:

  1. Go to Tools > System Maintenance. On the Tables tab, select User Security, and then click Open.

  2. Select a User Group from the list, and then click Security.

  3. In the Keyword search box, enter GOOGLE. Select Dispatching: Google Map Zone Lookup.

    GoogleLookup_SecurityOption_01

  4. Click OK.

Looking up an Address and Viewing Map Zones:

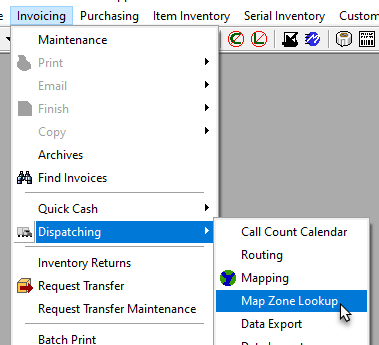

  1. Go to Invoicing > Dispatching > Map Zone Lookup.

    GoogleLookup_Steps_01

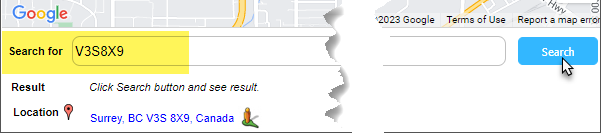

  2. Enter the full address or zip code, and then click Search.

    GoogleLookup_Steps_02

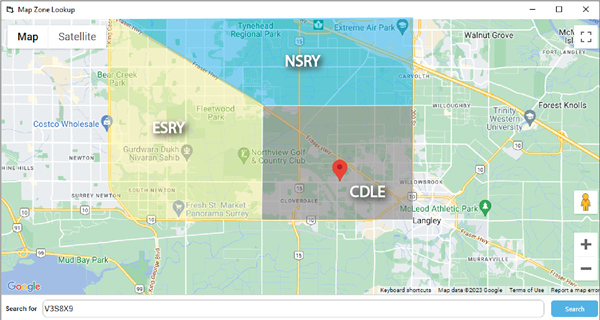

    The address or zip code is pinpointed on the map, and your Map Zones overlay if they are defined in EPASS.

    GoogleLookup_Steps_03
