Troubleshooting

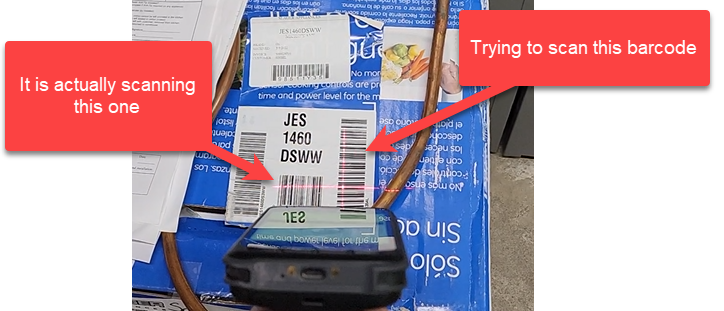

“My scanner is scanning the wrong barcode.”

If the scanner is targeting the wrong barcode, try the following:
Enable Picklist Mode
-

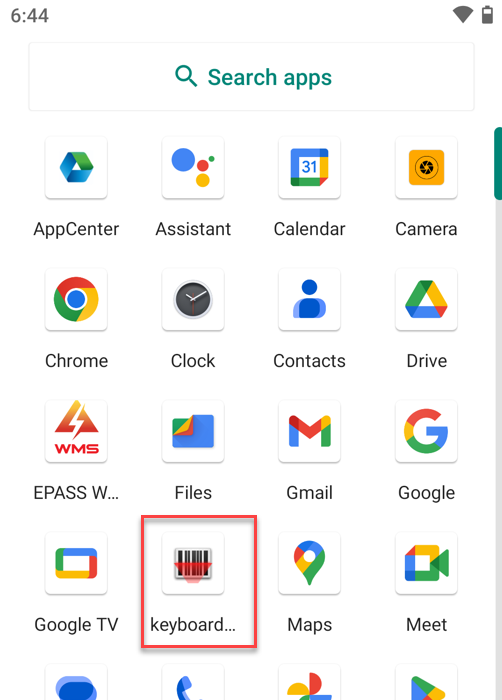

Close EPASS WMS and start the Keyboard Wedge app.
-
Tap 2DSettings.
-

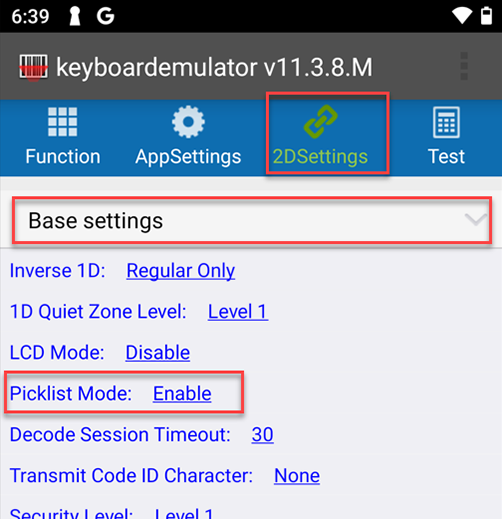

Tap Picklist Mode > Base Settings > Picklist Mode and set it to Enable.
-
Open EPASS WMS. The scanner will now only register a barcode that’s under the center targeting dot.
Disable UPC-A

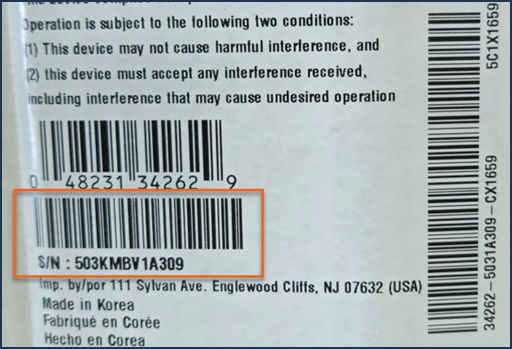

On this label, the second barcode (serial number) will only scan if the first barcode is blocked.

To prevent this, do the following:
-
Close EPASS WMS and start the Keyboard Wedge app.
-
Tap 2D Settings.
-

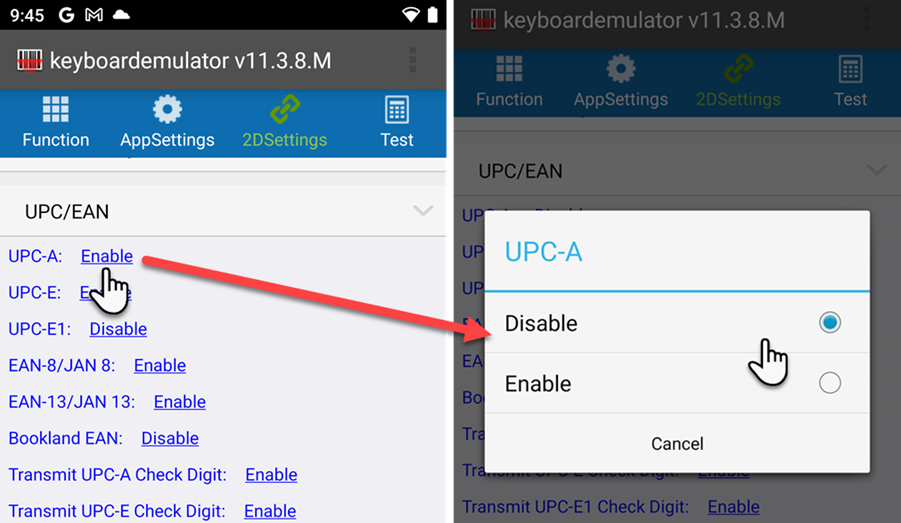

Tap UPC/EAN > UPC-A and set it to Disable.
Disable QR Code Scanning

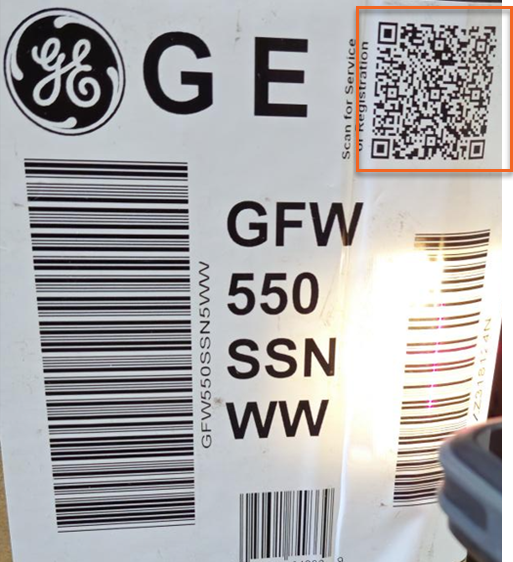

On this label, the QR code is scanned instead of the barcode.
To prevent this, do the following:
-
Close EPASS WMS and start the Keyboard Wedge app.
-
Tap 2D Settings.
-

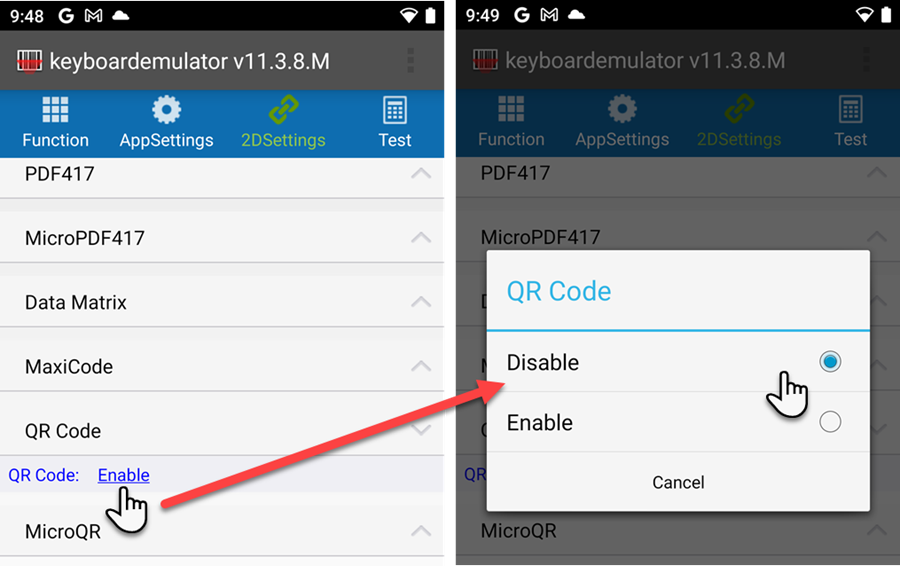

Tap QR Code > QR Code and set it to Disable.
Enable Interleaved 2 of 5 (BOSCH Serials Not Scanning)
Some supplier, including BOSCH, use Interleaved 2 of 5 barcodes for serials. If these barcodes are not scanning, verify that Interleaved 2 of 5 is enabled on the scanner.
Do the following:
-
Close EPASS WMS and start the Keyboard Wedge app.
-
Tap 2D Settings.
-
Tap Interleaved 2 of 5 > Interleaved 2 of 5 and make sure it is set to Enabled.
